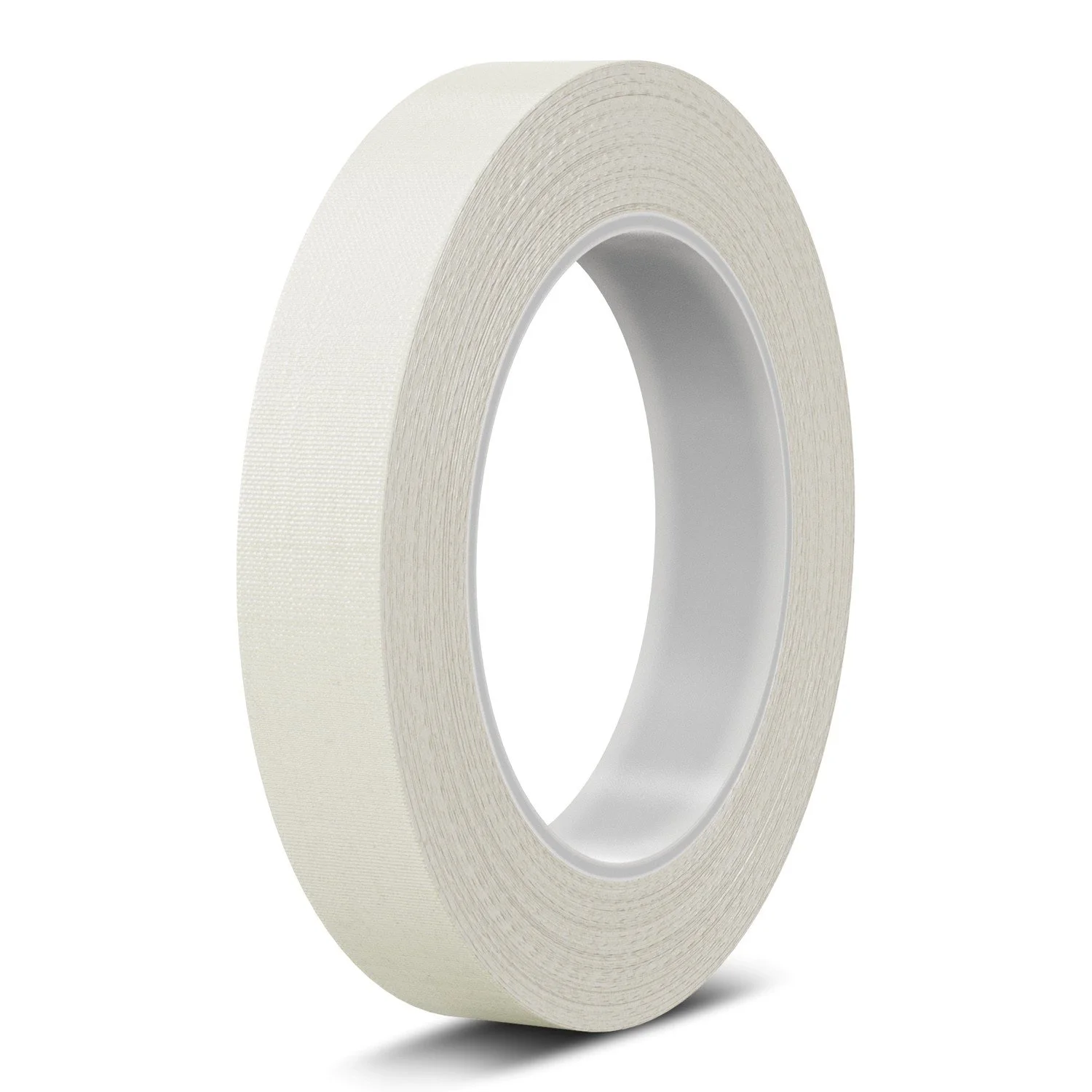

Single-Sided Glass Cloth Tapes
Single-sided glass cloth tapes are thin tapes with pressure sensitive adhesive on one side of an abrasion resistant glass cloth backing. Tapes come in a variety of thicknesses and with any PSA to meet your specific needs. These tapes are great for high heat applications and when a strong, abrasion resistant backing is required. Often used in aerospace, automotive, military, specialty vehicle, and ship building.
Applications include: Applications Include: High temperature splices, substrate separation / isolation, aerospace duct and cargo bay seam sealing, bundling, holding, and wire harnesses.
- Provides excellent temperature resistance
- Excellent abrasion resistance
- Fire retardant solutions available
- Clean removal across wide range of temperatures
| Product | Comment | Vendor | Backing Material | Backing Color | Adhesive Type | Backing Thickness mils (mm) | Total Tape Thickness | Service Temperature (°F) | Specifications |
| 27 | Corrosion protection adhesive, Rated to 600 v | 3M | Fiberglass Cloth | White | Rubber | 5.0 (0.13) | 7.0 (0.18) | UL Cert to 302 continuous | UL510A |
| 398FR | Aircraft duct & cargo bay seam sealing | 3M | Fiberglass Cloth | White | Acrylic | 5.0 (0.13) | 7.0 (1.8) | -20 - 250 | BMS 5-146, F.A.R. 25.853(a) & (d) |
| 79 | Optimized bonding acrylic adhesive | 3M | Fiberglass Cloth | White | Acrylic | 5.0 (0.13) | 7.0 (0.18) | UL Cert to 311 continuous | UL510A |
| 69 | Increased bond at high temperatures, Rated to 600 v | 3M | Fiberglass Cloth | White | Silicone | 5.5 (0.13) | 7.0 (0.18) | UL Cert to 392 continuous | UL510A, Mil-I-19166C |
| 361 | High temperature, adhesion, and abrasion resistance | 3M | Fiberglass Cloth | White | Silicone | 5.0 (0.13) | 6.4 (0.16) | -65 - 450 | F.A.R. 25.853 |
| 2915-7 | Insulation of electrical apparatus | St. Gobain | Fiberglass Cloth | White | Silicone | 4.5 (0.11) | 7.0 ( 0.18) | -100 - 500 | MIL-I-19166C |
| EMI.1030 | High temperature, adhesion, and abrasion resistance | EMI | Fiberglass Cloth | White | Silicone | 5.0 (0.13) | 7.0 (0.18) | -40 - 400 | MIL-19166C UL Listed |
| EMI.FG | Vermiculite coated fiberglass woven tape | EMI | Vermiculite coated fiberglass yarn | Natural / Tan | Acrylic | 225 (5.7) | 225 (5.7) | Backing up to 1500 | Mil-DTL-24244D, Type 18 |
