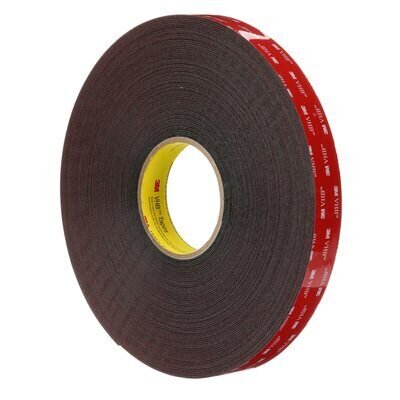

3M™ VHB™ 5952 Series Tape

The 5952 family of 3M™ VHB™ Tapes utilizes modified acrylic adhesive on both sides of a very conformable, adhesive foam core. The combination of strength, conformability and adhesion makes this family one of the most capable and well-rounded 3M™ VHB™ Tapes. It is specifically designed for good adhesion to high, medium and lower surface energy plastics and paints, metals and glass.

Applications include: Bonding powder coated stiffener to powder coated panel.

VHB Tape Technical Data 5900 Series Thin Tech Data
Request Quote/Sample All VHB Options



  • Fast and easy-to-use permanent bonding method provides high strength and long-term durability
  • Can replace mechanical fasteners or liquid adhesives
  • Black, 0.012 in (0.30 mm), modified acrylic adhesive and very conformable acrylic foam core bonds to a wide variety of substrates
  • Creates a permanent seal against water, moisture and more
  • Pressure sensitive adhesive bonds on contact to provide immediate handling strength
  • Allows the use of thinner, lighter weight and dissimilar materials
Product Color Thickness Adhesive Type Foam Type Density Release Liner
5906 Black 0.006 in (0.15 mm) ± 15% Modified Acrylic Highly Conformable Acrylic 45 lb/ft3 (720 kg/m3) 0.003 in (0.08 mm) clear polyester
5907 Black 0.008 in (0.20 mm) ± 15% Modified Acrylic Highly Conformable Acrylic 45 lb/ft3 (720 kg/m3) 0.003 in (0.08 mm) clear polyester
5908 Black 0.010 in (0.25 mm) ± 15% Modified Acrylic Highly Conformable Acrylic 45 lb/ft3 (720 kg/m3) 0.003 in (0.08 mm) clear polyester
5909 Black 0.012 in (0.3 mm) ± 15% Modified Acrylic Highly Conformable Acrylic 45 lb/ft3 (720 kg/m3) 0.003 in (0.08 mm) clear polyester
5915 Black 0.016 in (0.4 mm) ± 15% Modified Acrylic Highly Conformable Acrylic 43 lb/ft (690 kg/m) PE Film 0.005 in (0.125mm)
5915P Black 0.016 in (0.4 mm) ± 15% Modified Acrylic Highly Conformable Acrylic 43 lb/ft (690 kg/m) PCK Paper 0.004 in (0.10 mm)
5925 Black 0.025 in (0.64 mm) ± 15% Modified Acrylic Highly Conformable Acrylic 37 lb/ft (590 kg/m) PE Film 0.005 in (0.125 mm)
5925P Black 0.025 in (0.64 mm) ± 15% Modified Acrylic Highly Conformable Acrylic 37 lb/ft (590 kg/m) PE Film 0.005 in (0.125 mm)
5930 Black 0.032 in (0.8 mm) ± 15% Modified Acrylic Highly Conformable Acrylic 37 lb/ft (590 kg/m) PE Film 0.005 in (0.125 mm)
5930P Black 0.032 in (0.8 mm) ± 15% Modified Acrylic Highly Conformable Acrylic 37 lb/ft (590 kg/m) PCK Paper 0.004 in (0.10 mm)
5952 Black 0.045 in (1.1 mm) ± 10% Modified Acrylic Highly Conformable Acrylic 37 lb/ft (590 kg/m) PE Film 0.005 in (0.125 mm)
5952P Black 0.045 in (1.1 mm) ± 10% Modified Acrylic Highly Conformable Acrylic 37 lb/ft (590 kg/m) PCK Paper 0.004 in (0.10 mm)
5958FR Black 0.040 in (1.0 mm) ± 10% Modified Acrylic Highly Conformable Acrylic 50 lb/ft (800 kg/m) PE Film 0.005 in (0.125 mm)
5962 Black 0.062 in (1.55 mm) ± 10% Modified Acrylic Highly Conformable Acrylic 37 lb/ft (590 kg/m) PE Film 0.005 in (0.125 mm)
5962P Black 0.062 in (1.55 mm) ± 10% Modified Acrylic Highly Conformable Acrylic 37 lb/ft (590 kg/m) PCK Paper 0.004 in (0.10 mm)
